Air Oil Separator Element 1613688000
Replacement for Atlas Copco
Compatible Models: 1613688000 / 2901021300
- Overview
- Recommended Products
High-Efficiency Oil-Air Separation for Screw Air Compressors

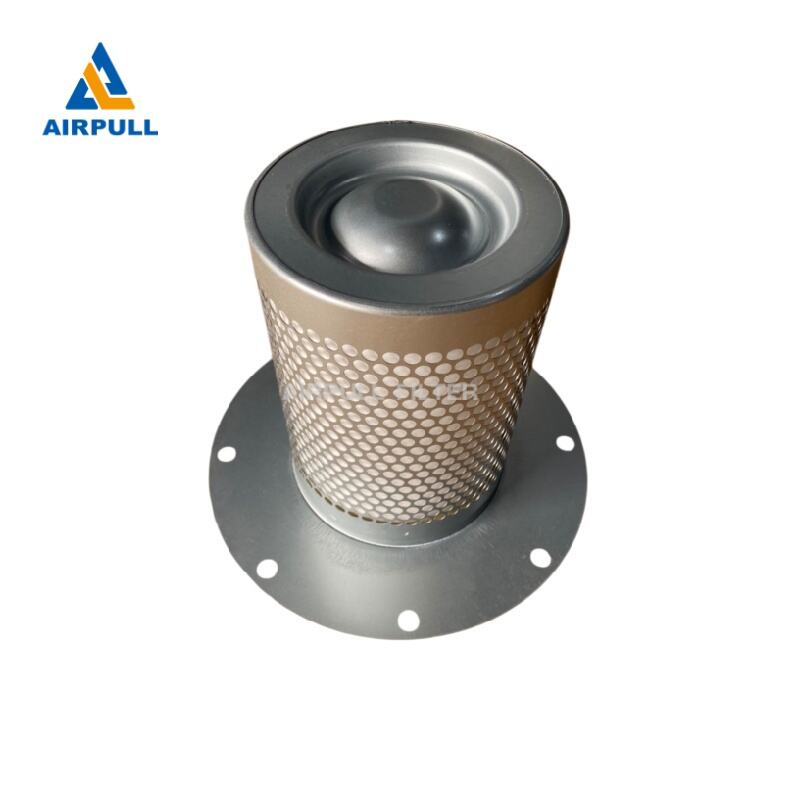

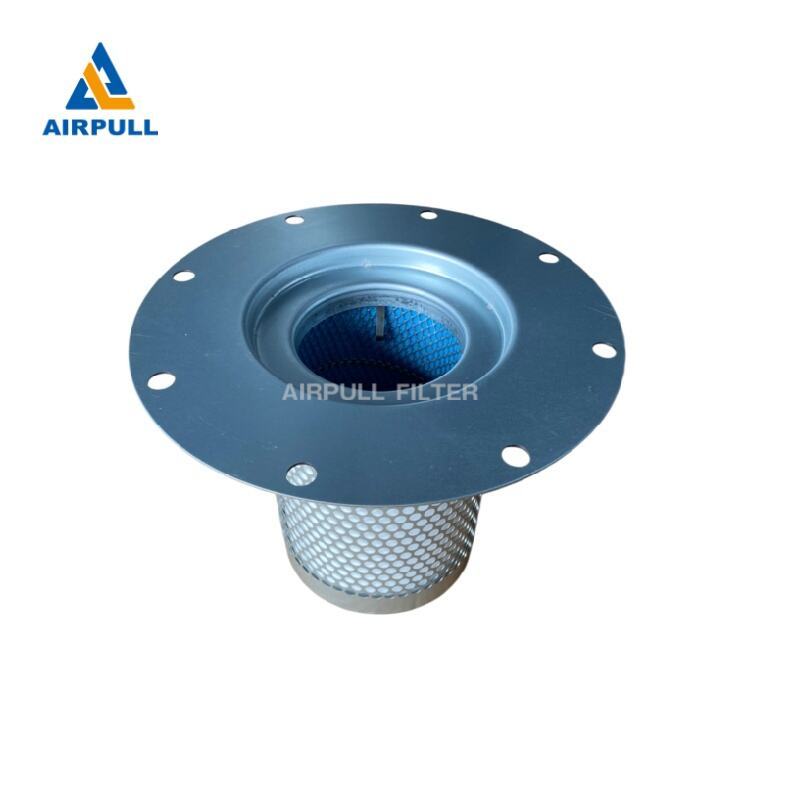

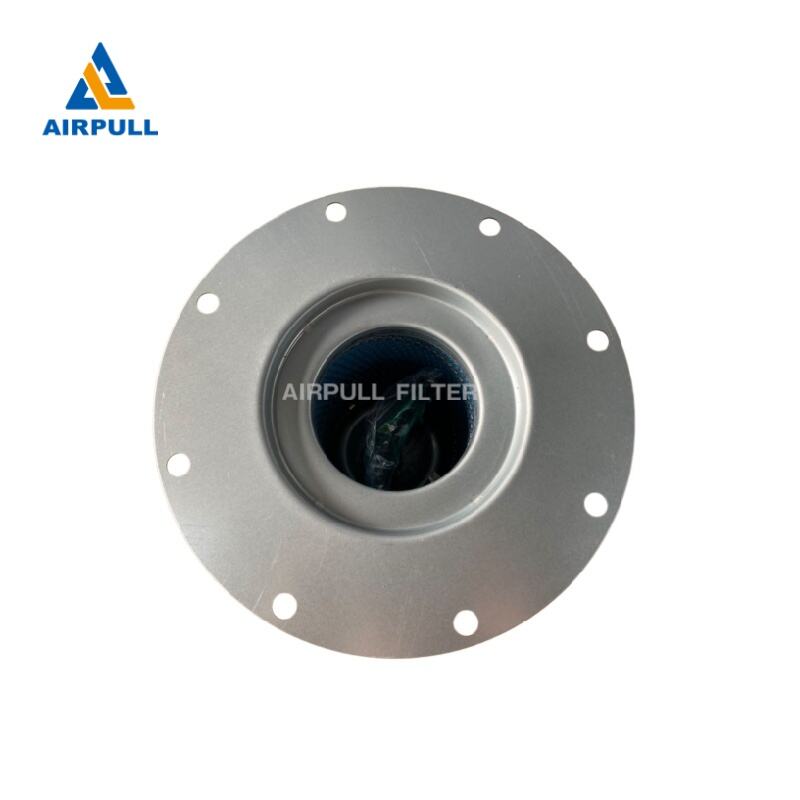

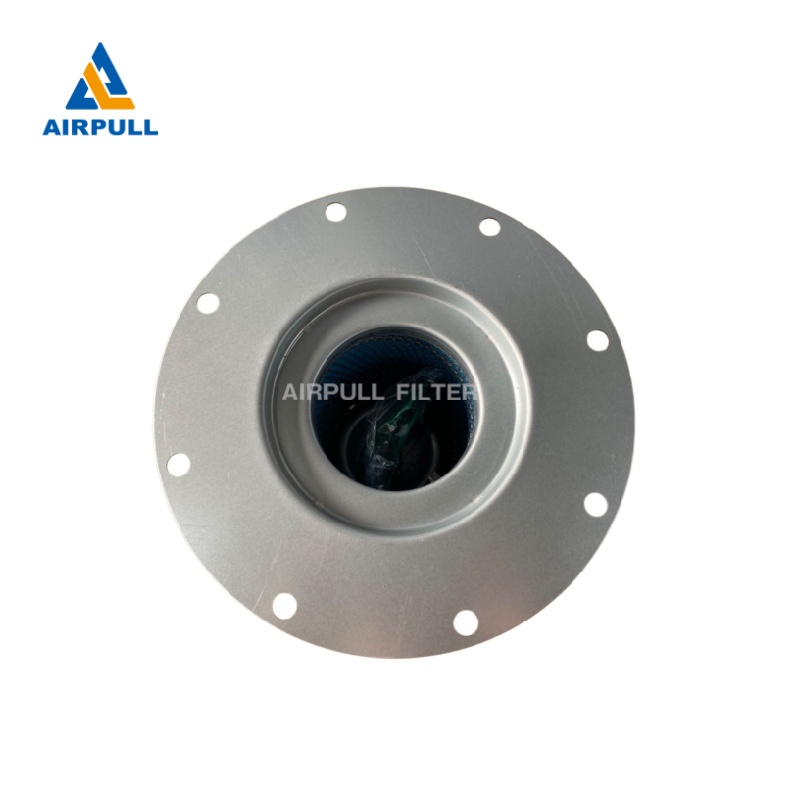

The 1613688000 air oil separator element is a high-performance oil separator for screw air compressors, designed to efficiently separate oil from compressed air.
It is widely used as a replacement for:
· Atlas Copco 1613688000
· Atlas Copco 2901021300
This product ensures clean compressed air output, low oil carry-over, and stable compressor operation.
Product Overview
The air oil separator filter element is a key component in screw air compressors.
It separates oil mist from compressed air and returns the oil back to the lubrication system.
What is an Air Oil Separator?
An air oil separator works by:
1. Compressing oil-air mixture
2. Passing it through fine fiberglass media
3. Capturing oil particles
4. Returning oil to the system
Result:
✔ Clean compressed air
✔ Reduced oil consumption
✔ Stable system pressure
Performance Advantages
✔ Oil content ≤ 3 ppm
✔ Initial pressure drop ≤ 0.2 bar
✔ High separation efficiency
✔ Long service life up to 4000 hours
✔ Stable performance under continuous operation
Advanced Filtration Technology
Premium Fiberglass Media
Captures fine oil mist particles
Multi-Layer Structure
Improves separation efficiency
Low Pressure Drop Design
Reduces energy consumption
Technical Specifications
Parameter |
Description |
Product Name |
Air Oil Separator |
Model |
1613688000 |
Compatible Models |
1613688000 / 2901021300 |
Oil Content |
≤3 ppm |
Initial Pressure Drop |
≤0.2 bar |
Service Life |
4000 Hours |
Material |
Fiberglass / metal / rubber gasket |
Applications
Widely used in:
· Atlas Copco screw air compressors
· Industrial compressed air systems
· Manufacturing plants
· Power and energy industries
Why Oil-Air Separation Matters
Without a reliable air oil separator:
❌ Oil enters compressed air system
❌ Equipment contamination occurs
❌ Oil consumption increases
A high-quality separator ensures:
✔ Clean air output
✔ Lower oil carry-over
✔ Improved system efficiency
✔ Longer compressor lifespan
Replacement Interval
Recommended: every 3000–4000 hours
Replace earlier if:
· Pressure drop increases
· Oil consumption rises
30 Years Manufacturer Advantage
✔ 30+ years filtration manufacturing experience
✔ Full range of compressor spare parts
✔ Stable export supply worldwide
Smart Factory
· Automated production lines
· Intelligent testing systems
· Consistent product quality
OEM & Customization
✔ OEM / ODM supported
✔ Custom specifications available
✔ Private labeling supported
More Replacement Part Numbers
The following models are also available:
1613688000 |
2901021300 |
1613243300 |
1612386900 |
2901034300 |
2901043200 |
2901162600 |
1622314000 |
1622646000 |
1623051400 |
1623051500 |
1623051600 |
1631105500 |
1631050200 |
2901905600 |
2901905900 |
FAQ
1. Is this compatible with Atlas Copco compressors?
Yes, it replaces Atlas Copco 1613688000 and 2901021300.
2. What is the function of an air oil separator?
It separates oil from compressed air to ensure clean air output and oil recycling.
3. How often should it be replaced?
Typically every 3000–4000 hours.
4. What happens if not replaced on time?
It may cause high oil carry-over, pressure drop, and reduced efficiency.
5. What is the oil content after filtration?
≤ 3 ppm under normal conditions.
6. Do you support OEM customization?
Yes, OEM and private label services are available.
