Air Compressor Filter Elements: Functions, Types & Why They Matter

In any industrial compressed air system, the air compressor filtration system plays a decisive role in equipment reliability, air quality, and operating cost control.

Air compressor filter elements are not simple accessories — they are essential industrial air compressor parts that protect the entire system from contamination and premature wear.

Understanding how each filter works helps operators extend equipment lifespan and reduce long-term maintenance costs.

How the Air Compressor Filtration System Works

In oil-injected screw compressors, compressed air leaving the main unit contains:

• Dust and solid particles

• Oil mist and fine oil droplets

• Moisture and other contaminants

These impurities must be removed through a structured air compressor filtration system, which includes:

1. Air compressor air filter element (intake stage)

2. Air compressor oil filter element (lubrication stage)

3. Air oil separator filter element (separation stage)

Each component plays a unique and irreplaceable role.

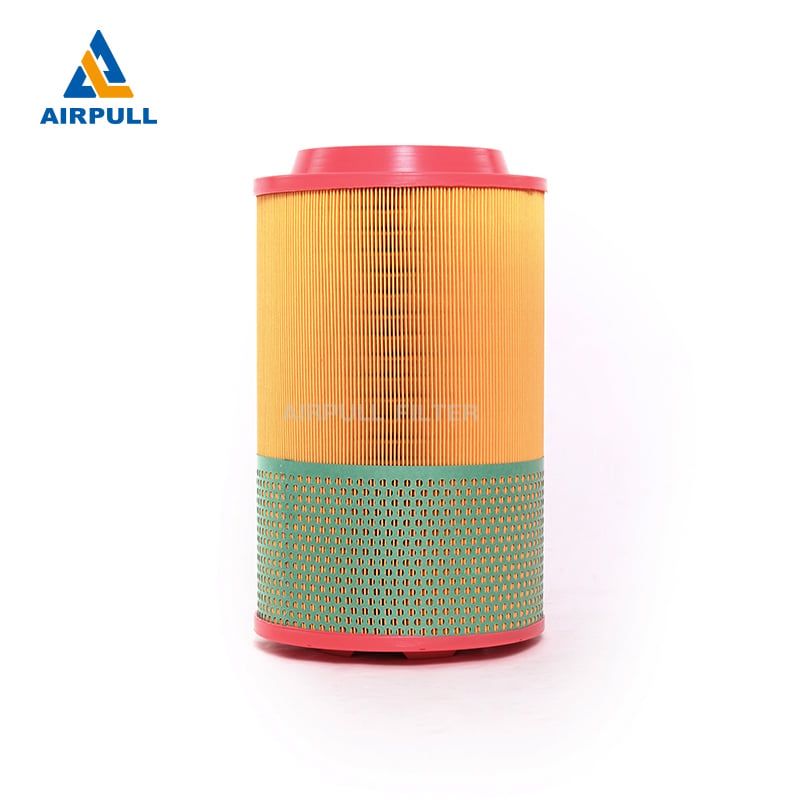

1. Air Compressor Air Filter Element

The air compressor air filter is the first line of defense.

Installed at the air intake, this air filter element prevents dust, sand, and airborne particles from entering the compression chamber.

Why It Matters

If contaminants enter the system, they can:

• Damage rotors and bearings

• Pollute lubricating oil

• Reduce compression efficiency

• Shorten the service life of critical screw compressor parts

A high-quality intake filter ensures clean airflow, stable pressure output, and reduced internal wear.

Because of its importance, it is one of the most frequently replaced compressor spare parts in preventive maintenance schedules.

2. Air Compressor Oil Filter Element

The air compressor oil filter removes impurities from lubricating oil before it circulates back into the system.

This filter eliminates:

• Metal particles

• Sludge and oxidation residues

• Moisture contamination

Clean oil is essential for protecting moving air compressor components, reducing friction, and maintaining temperature stability.

A reliable oil filter element helps:

• Extend overhaul intervals

• Improve energy efficiency

• Lower overall operating costs

As part of routine air compressor replacement parts, oil filters are critical to long-term compressor reliability.

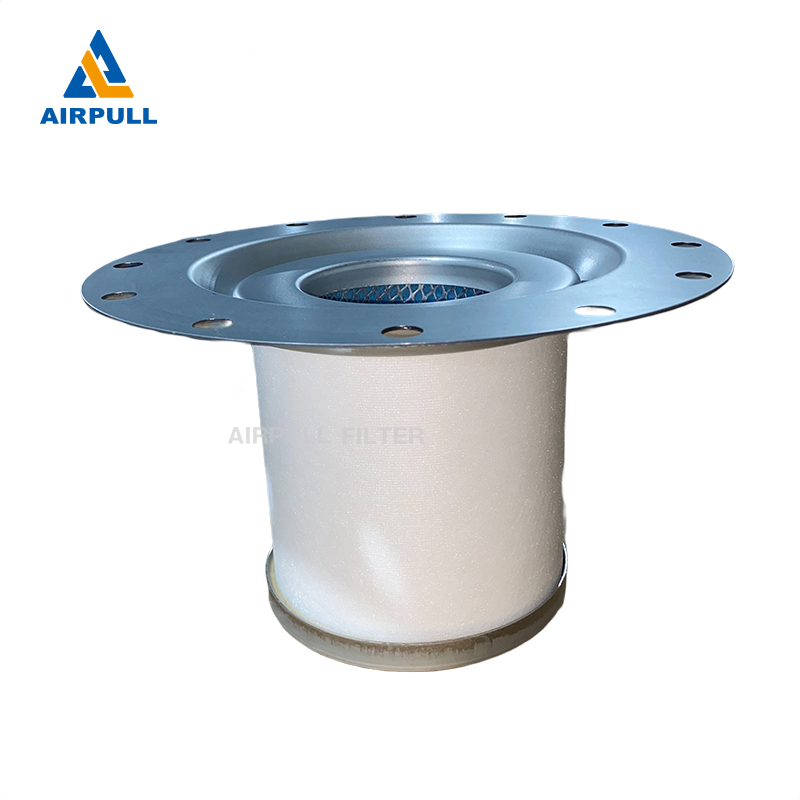

3. Air Oil Separator Filter Element

The air oil separator filter element is the core component responsible for compressed air quality in oil-injected screw compressors.

After primary mechanical separation, fine oil mist remains suspended in compressed air. The air compressor oil separator uses high-efficiency fiberglass media to capture microscopic oil particles.

How Separation Happens

• Oil mist is intercepted by micro-fibers

• Tiny droplets diffuse and coalesce

• Larger oil droplets form

• Oil returns to the lubrication system through the oil return pipe

This process ensures:

• Low oil carryover

• Stable compressed air purity

• Reduced oil consumption

• High-quality air discharge

Among all compressor spares, the oil separator directly affects air quality and downstream equipment protection.

Why High-Quality Filter Elements Reduce Costs

Using premium air compressor replacement filter cartridges may seem like a small decision, but it directly influences:

• Equipment lifespan

• Energy consumption

• Maintenance frequency

• Downtime risk

• Total operating cost

Investing in reliable compressor spare parts is one of the most effective strategies for reducing long-term industrial operating expenses.

Conclusion

Air compressor filter elements — including the air compressor air filter, air compressor oil filter, and air oil separator filter element — are the foundation of a stable and efficient compressed air system.

Together, they:

• Protect critical screw compressor parts

• Ensure clean air output

• Improve system efficiency

• Extend equipment lifespan

• Reduce operating costs

For any industrial facility, selecting high-quality industrial air compressor parts is not optional — it is essential for sustainable performance.
