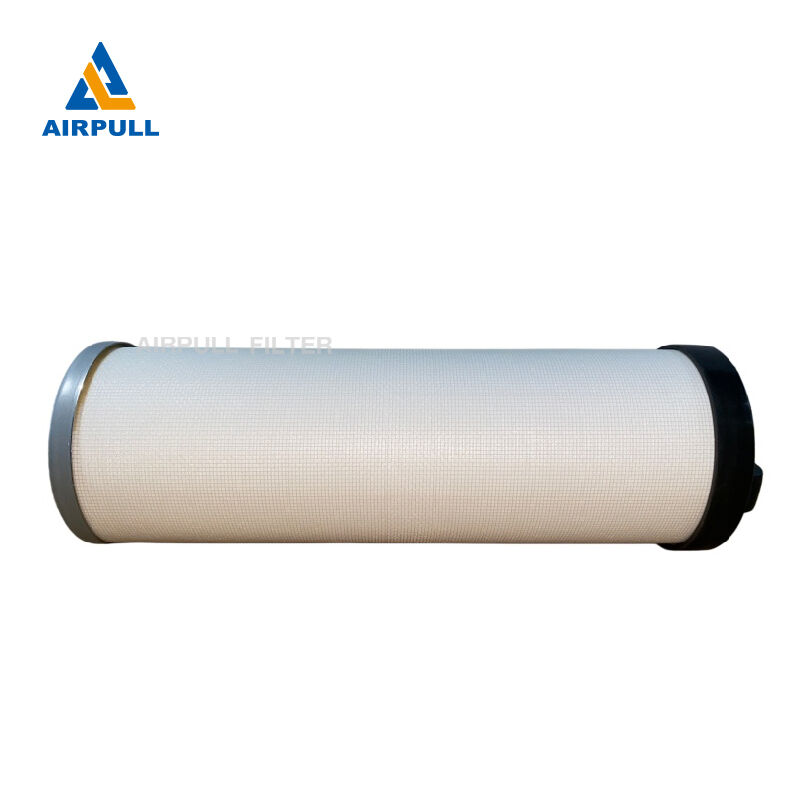

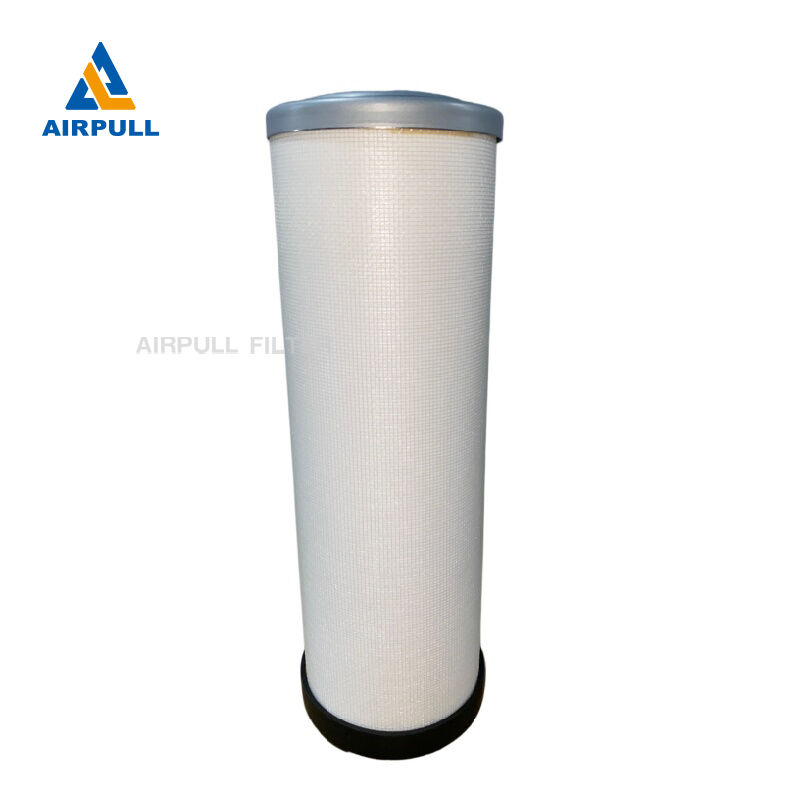

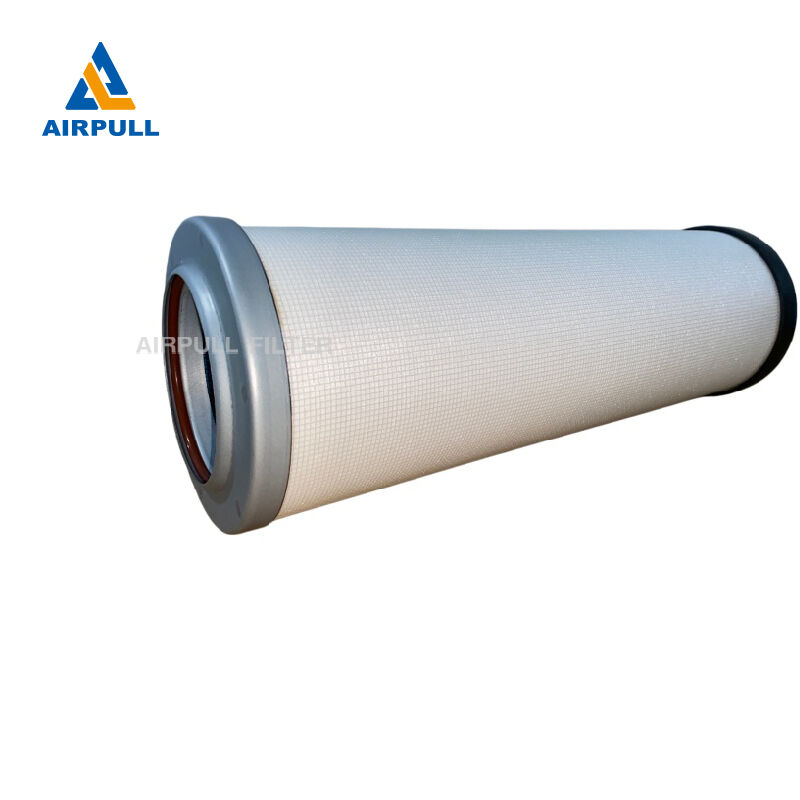

Air Oil Separator Element P-CE03-572
Replacement Oil-Air Separator for Kobelco Screw Air Compressors
- Overview
- Recommended Products
High-Efficiency Oil Separation | 30 Years Manufacturer | OEM Replacement
The P-CE03-572 air oil separator element is a high-performance oil-air separator filter designed for rotary screw air compressors, especially compatible with Kobelco compressor systems.
With over 30 years of filtration manufacturing experience, AIRPULL delivers reliable and durable air compressor filtration solutions for global industrial applications.
✔ Oil Content ≤ 3 ppm
✔ Stable Pressure Drop ≤ 0.2 bar
✔ Long Service Life up to 4000 Hours
✔ Premium Fiberglass Media
✔ Ideal Replacement for Kobelco Oil Separator
Product Overview
The air oil separator is a critical component in screw compressor systems. It separates oil from compressed air, ensuring clean air output and efficient oil recycling.
This model is engineered as a replacement for Kobelco oil-air separator elements, ensuring stable operation and long service life.
Compatible Model
· P-CE03-572
Suitable as a replacement oil separator for Kobelco screw compressors.
Why Air Oil Separator Is Important
In screw compressors, oil is injected to:
· Lubricate internal components
· Cool the compression system
· Seal gaps between rotors
Without a high-quality air oil separator:
❌ Oil carryover increases
❌ Air quality decreases
❌ Oil consumption rises
❌ Downstream equipment may be damaged
A reliable oil-air separator filter is essential for efficient compressor operation.
How Oil-Air Separation Works
1. Oil-Air Mixture Enters Tank
Compressed air mixed with oil flows into separator tank.
2. Primary Separation
Large oil droplets settle by gravity.
3. Fine Filtration
Fiberglass media captures fine oil mist.
4. Clean Air Output
Clean compressed air exits the system.
Recovered oil returns to the lubrication system.
Advanced Filtration Technology
High-Efficiency Fiberglass Media
Captures micron-level oil particles.
Multi-Layer Structure
Improves separation efficiency and durability.
Low Pressure Drop Design
Ensures energy-saving performance.
Oil Carryover Explained
· Oil content after separation: ≤ 3 ppm
Benefits:
✔ Clean compressed air
✔ Reduced oil consumption
✔ Improved system efficiency
Pressure Drop & Energy Saving
· Initial pressure drop: ≤ 0.2 bar
Lower pressure drop = lower energy consumption.

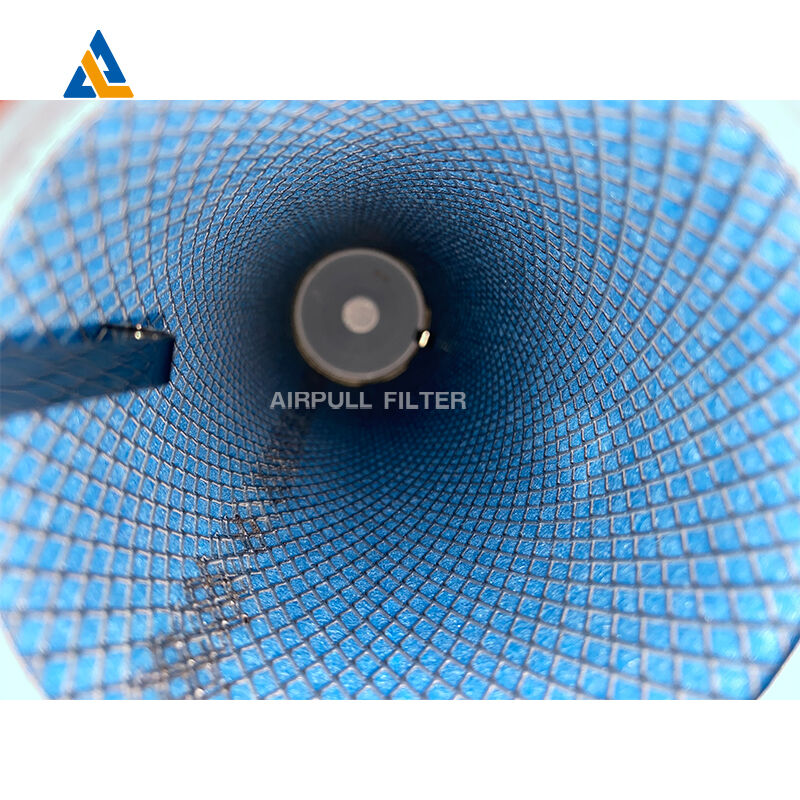

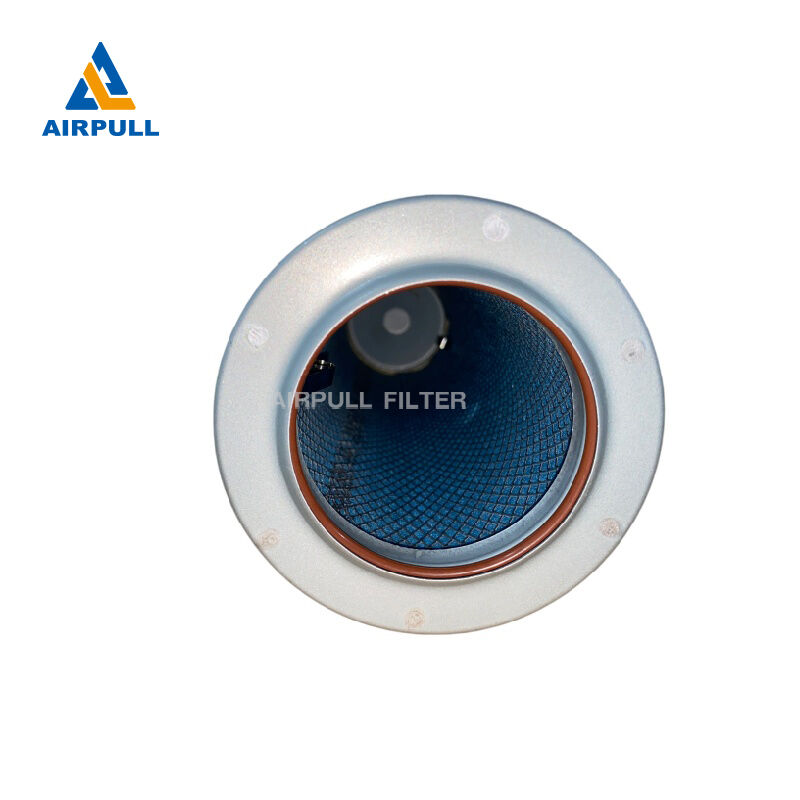

Product Structure
· Premium fiberglass filter media
· Reinforced inner support
· Corrosion-resistant metal end caps
· High-quality sealing gasket
Technical Specifications
Parameter |
Description |
Product Name |
Air Oil Separator |
Model |
P-CE03-572 |
Oil Content |
≤ 3 ppm |
Initial Pressure Drop |
≤ 0.2 bar |
Service Life |
4000 Hours |
Materials |
Fiberglass, Metal, Rubber |
Application |
Screw Air Compressors |
Applications
Widely used in:
· Kobelco screw air compressors
· Industrial compressed air systems
· Manufacturing plants
· Automotive industry
· Power & energy sectors
Other Kobelco Compatible Part Numbers
Popular Models
· P-CE03-578
· P-CE03-592
· P-CE03-577
· P-CE03-595
Full Cross Reference
P-CE03-537 |
P-F03-3002-01 |
P-CE03-595 |
P-CE03-530 |
P-F03-3002-02 |
P-CE03-577 |
P-CE03-530-01 |
PF03-3025-02 |
PS-CE03-506 |
P-CE03-532 |
4H11L01013P |
P-CE03-596 |
P-CE03-534 |
P-CE03-538 |
SG1230A |
P-CE03-572 |
P-CG14-501-02 |
P-CE03-517-03 |
P-CE03-578 |
3221115215 |
P-CE03-529 |
PS-CE03-501 |
P-CE03-527 |
457292254 |
740505 |
P-CE03-592 |
|
Suitable for multiple Kobelco compressor systems.
30 Years Manufacturing Advantage
✔ Professional filtration manufacturer since 1996
✔ Full range of compressor filters
✔ Rich global export experience
Smart Factory
· Automated production lines
· Precision manufacturing
· Strict quality inspection system
Performance Advantages
✔ High separation efficiency
✔ Low oil carryover
✔ Stable pressure drop
✔ Long service life
✔ Suitable for continuous operation
When to Replace Oil Separator?
Recommended: 3000–4000 hours
Replace when:
· Oil consumption increases
· Pressure drop rises
· Oil appears in compressed air
Why Choose AIRPULL
✔ 30 years experience
✔ Factory-direct pricing
✔ OEM / ODM supported
✔ Stable quality
✔ Fast delivery
Packaging & Delivery
· Standard export cartons
· Custom packaging available
· Delivery time: 7–15 working days
Frequently Asked Questions
Is this suitable for Kobelco compressors?
Yes, this is a replacement oil-air separator for Kobelco systems.
Do you support customization?
Yes, OEM & ODM services are available.
What is the service life?
Typically 4000 hours, depending on working conditions.
Get a Quote
Looking for a reliable Kobelco oil separator supplier?
✔ Factory Price
✔ Stable Quality
✔ Fast Delivery
Contact us now for oil separator quotation
