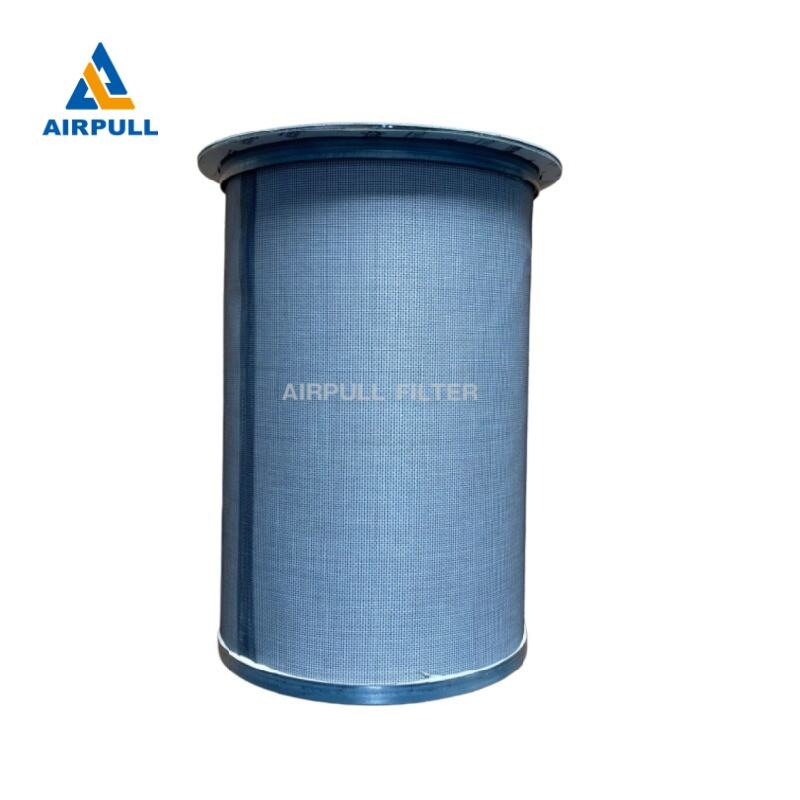

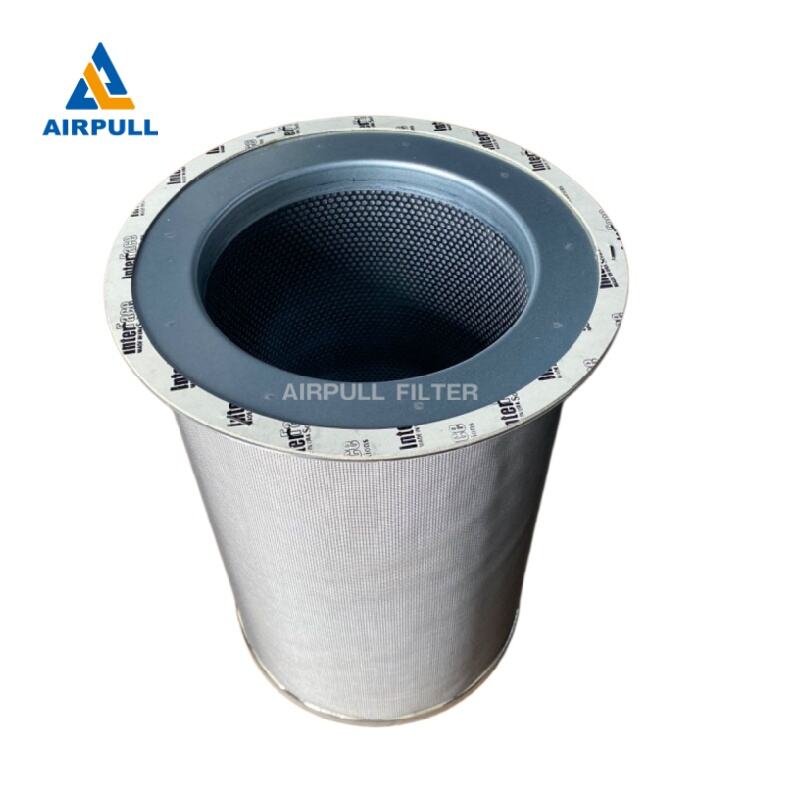

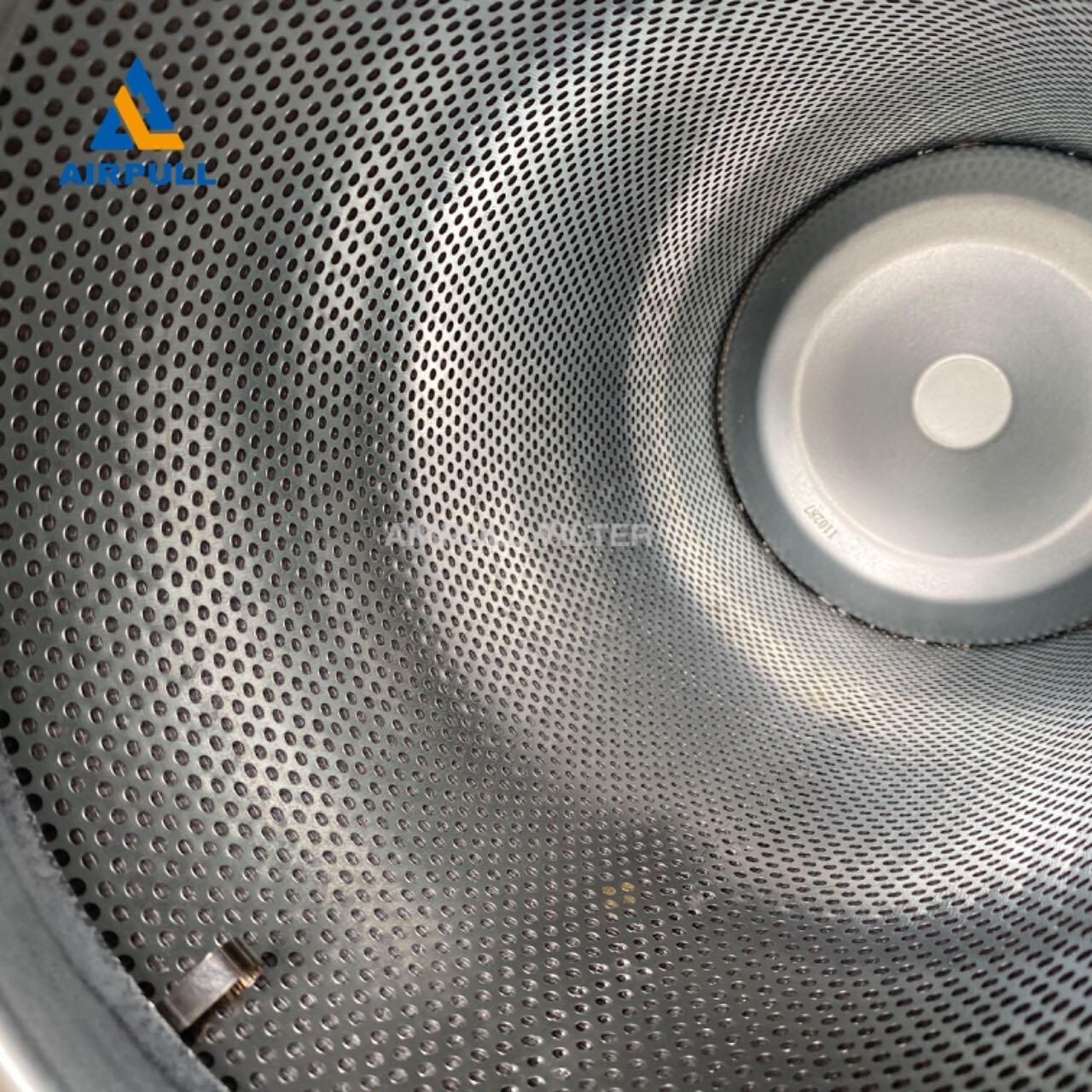

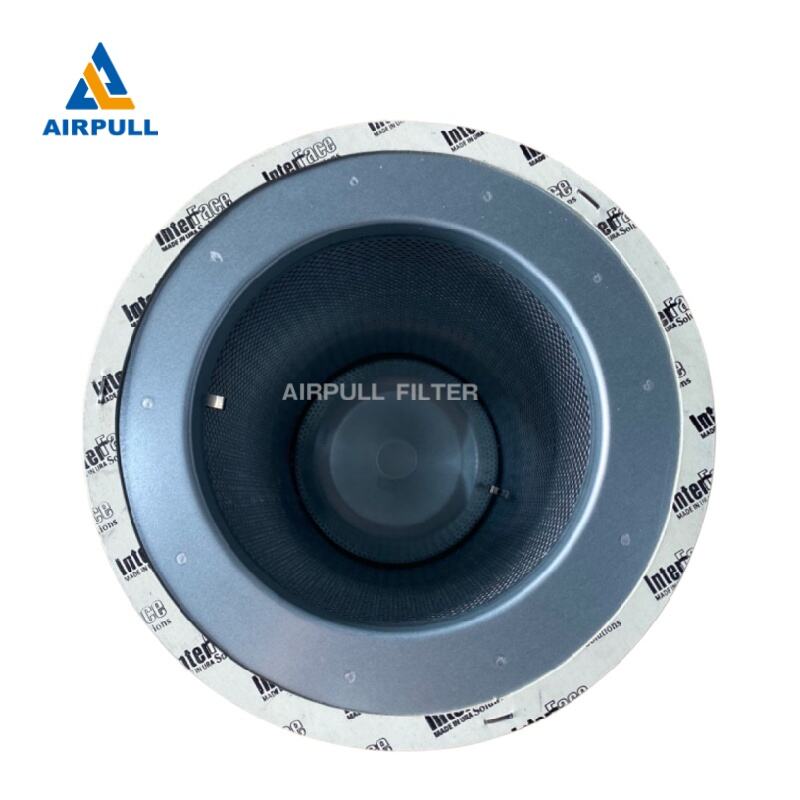

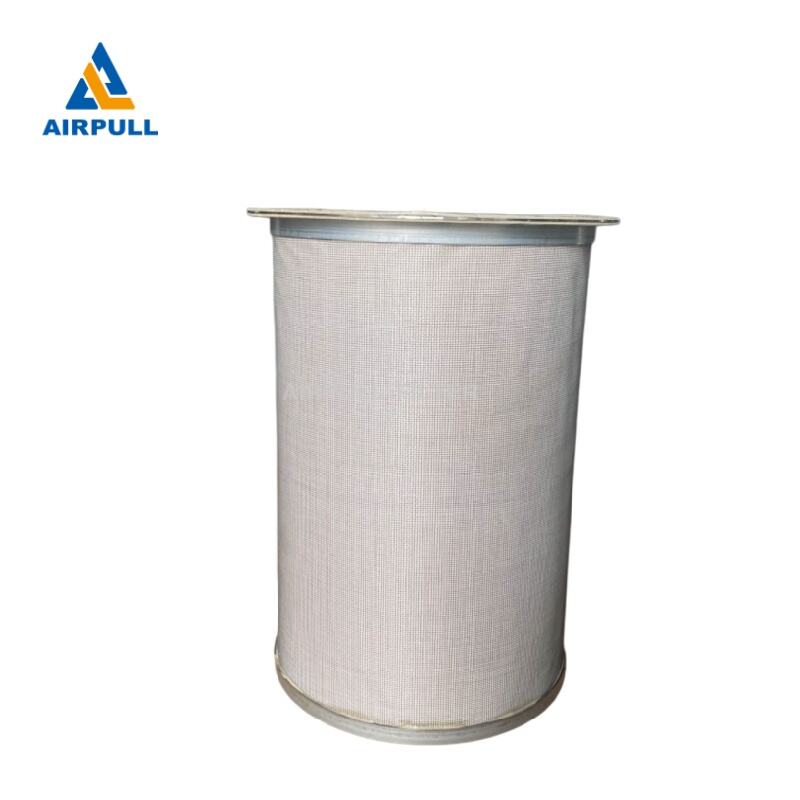

Air Oil Separator Element 1000169447
Replacement for Kobelco Screw Air Compressors
High-Efficiency Oil-Air Separation for Industrial Compressor Systems
- Overview
- Recommended Products
Clean Compressed Air & Stable Compressor Operation
The 1000169447 air oil separator element is a high-performance oil separator filter designed for rotary screw air compressors.
Specially engineered for Kobelco compressor systems, it efficiently removes oil mist from compressed air to ensure:
✔ Clean compressed air output
✔ Low oil carry-over
✔ Reduced oil consumption
✔ Stable system pressure
✔ Longer compressor service life
Product Overview
The air oil separator filter element is a critical component installed inside the oil separator tank of screw air compressors.
During operation, lubricating oil mixes with compressed air for cooling, sealing, and lubrication. The separator removes oil particles from the air stream and recovers the oil back into the lubrication system.
A high-quality separator helps:
✔ Improve compressed air quality
✔ Reduce oil loss
✔ Lower maintenance costs
✔ Improve compressor efficiency
What Does an Air Oil Separator Do?
The oil-air separator works through a multi-stage filtration process:
Step 1 – Primary Separation
Large oil droplets separate naturally inside the separator tank.
Step 2 – Fine Separation
Compressed air passes through premium fiberglass filter media to capture microscopic oil mist.
Step 3 – Oil Recovery
Separated oil returns to the lubrication circulation system.
Result:
✔ Cleaner compressed air
✔ Lower oil consumption
✔ Improved energy efficiency
✔ Stable compressor performance
Performance Advantages
✔ Oil content ≤ 3 ppm
✔ Initial pressure drop ≤ 0.2 bar
✔ High separation efficiency
✔ Long service life up to 4000 hours
✔ Stable operation under continuous industrial conditions
Advanced Filtration Technology
Premium Fiberglass Filter Media
Efficiently captures ultra-fine oil particles
Multi-Layer Separation Structure
Improves oil-air separation efficiency
Low Pressure Drop Design
Helps reduce compressor energy consumption
Reinforced Structural Design
Ensures durability during continuous operation
Technical Specifications
Parameter |
Description |
Product Name |
Air Oil Separator |
Model |
1000169447 |
Application |
Screw air compressor |
Oil Content |
≤ 3 ppm |
Initial Pressure Drop |
≤ 0.2 bar |
Service Life |
3000–4000 Hours |
Material |
Fiberglass / metal / rubber gasket |
Filtration Type |
Oil-air separation |
Applications
Widely used in:
· Kobelco screw air compressors
· Industrial compressed air systems
· Manufacturing plants
· Mining and textile industries
· Heavy-duty industrial environments
Why Oil-Air Separation Matters
Without proper oil separation:
❌ Oil enters compressed air pipelines
❌ Oil consumption increases
❌ Downstream equipment becomes contaminated
❌ Compressor efficiency decreases
A high-quality separator ensures:
✔ Cleaner compressed air
✔ Lower operating costs
✔ Longer equipment lifespan
Replacement Recommendation
Recommended replacement interval: 3000–4000 operating hours
Replace earlier if:
· Pressure drop increases
· Oil carry-over rises
· Compressor operating temperature becomes unstable
30 Years Professional Filter Manufacturer
We are a professional compressor filtration manufacturer with over 30 years of production experience.
✔ Full range of compressor spare parts
✔ Advanced manufacturing technology
✔ Stable global export capability
Smart Factory
Our intelligent factory features:
· Automated production lines
· Intelligent quality inspection systems
· Precision manufacturing processes
· Strict quality control standards
Ensuring stable and reliable product quality.
OEM & Customization
✔ OEM / ODM supported
✔ Customized dimensions available
✔ Private labeling supported
✔ Customized packaging available
More Replacement Part Numbers for Kobelco
1000169447 |
P-CE03-572 |
P-CE03-578 |
P-CE03-592 |
P-CE03-530 |
P-CE03-537 |
P-CE03-595 |
P-CE03-577 |
P-CE03-532 |
P-CE03-529 |
P-CE03-527 |
PS-CE03-506 |
PF03-3025-02 |
3221115215 |
457292254 |
740505 |
SEO Supporting Content
This product is widely used as:
· Air oil separator for compressor
· Screw compressor oil separator
· Oil separator filter element
· Compressor spare parts
Suitable for:
· OEM replacement
· Aftermarket maintenance
· Industrial compressed air systems
FAQ
1. What is the function of an air oil separator?
It separates oil from compressed air and returns the oil to the lubrication system.
2. How often should the separator be replaced?
Normally every 3000–4000 hours.
3. What happens if the separator becomes clogged?
It may cause high oil carry-over and reduced compressor efficiency.
4. Is it suitable for screw compressors?
Yes, it is specially designed for rotary screw air compressors.
5. What is the oil content after separation?
≤ 3 ppm under normal operating conditions.
6. Do you support OEM customization?
Yes, OEM and private label services are available.
