Replacement for 2901043100 / 29504376 / 11323374 / 98262207 / 6.2085.0 / 54672522 / 6211474300501
High-Efficiency Intake Filtration for Screw Air Compressors
OEM Replacement | Factory Direct Supply | Industrial-Grade Performance

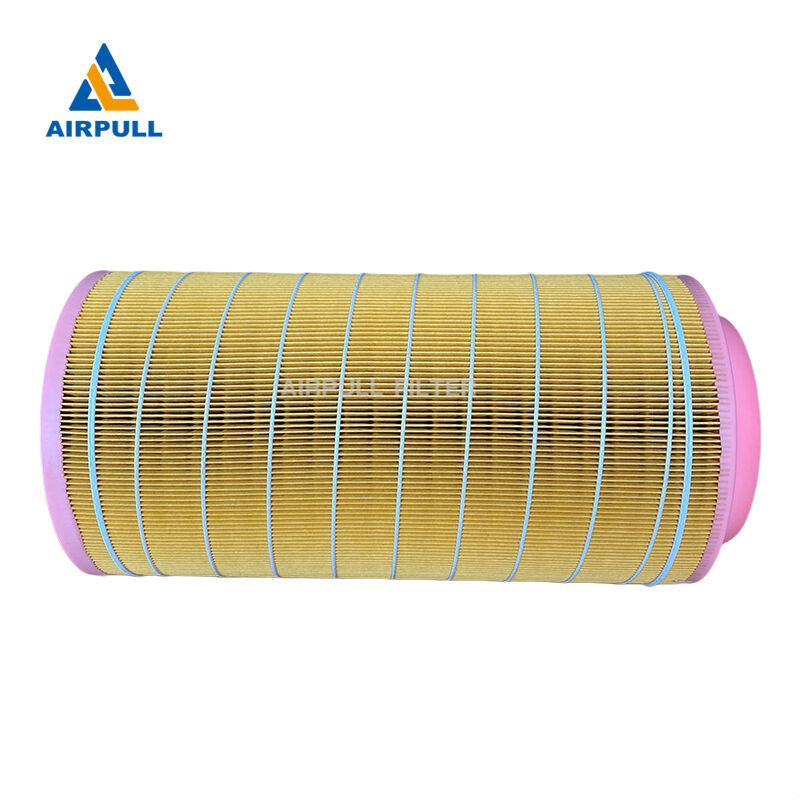

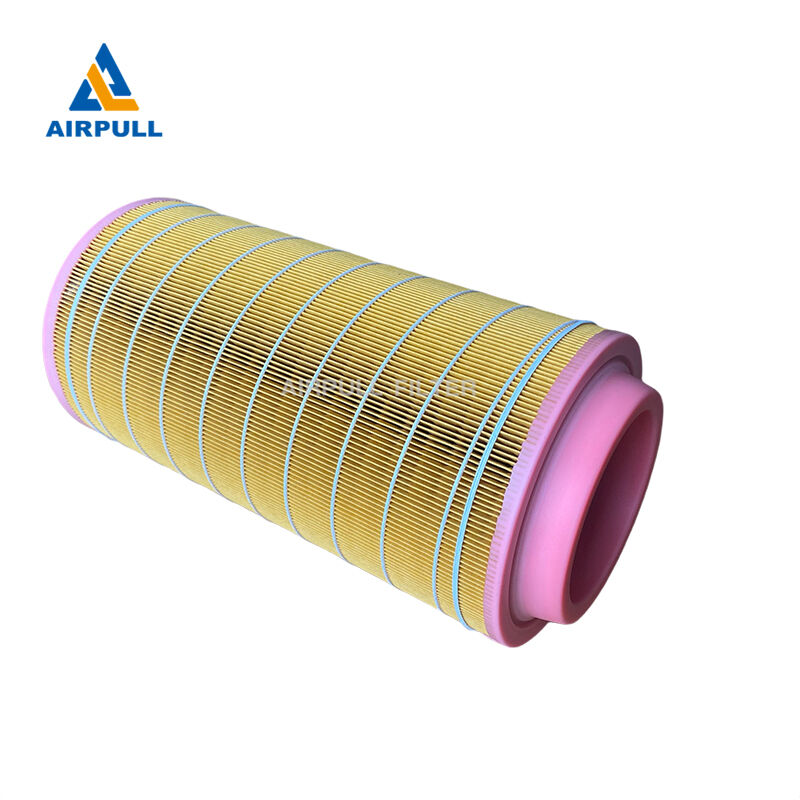

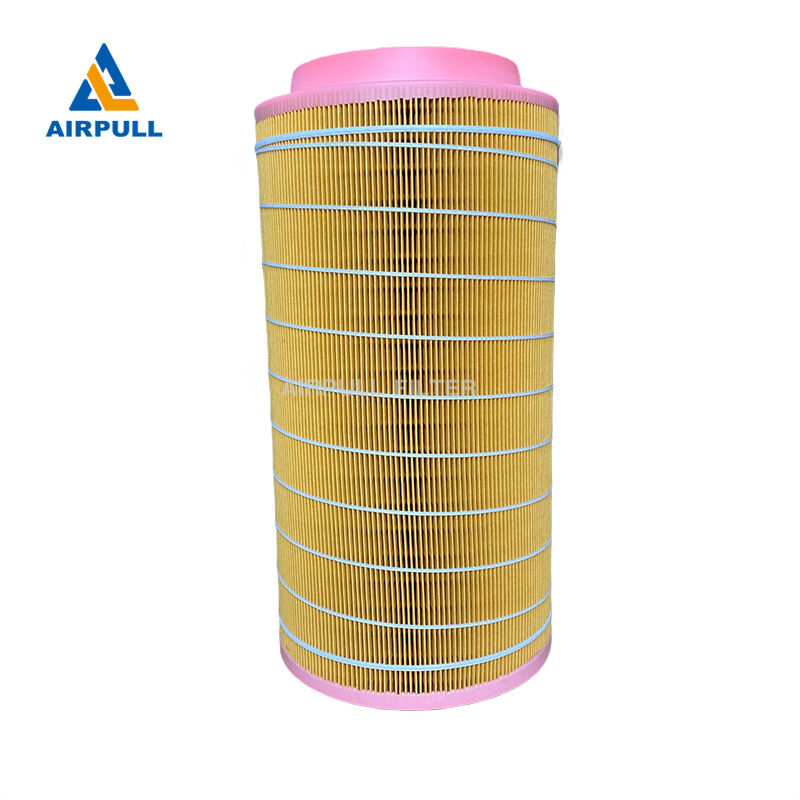

The 1613740800 / C20500 air compressor air filter element is a high-performance intake air filter designed for rotary screw air compressors. It provides reliable filtration of dust and airborne particles, ensuring clean air intake and stable compressor operation.
This model is widely used as a replacement air filter element compatible with multiple international compressor brands and part numbers.
✔ Filtration Efficiency up to 99.8%
✔ Low Pressure Drop & Stable Airflow
✔ High Dust Holding Capacity
✔ OEM-Compatible Replacement Filter
Product Overview
The air compressor air filter element is installed at the compressor intake system to remove:
· Dust
· Sand
· Fine industrial particles
By preventing contaminants from entering the compression chamber, this screw compressor air filter helps:
· Protect rotors and bearings
· Maintain stable airflow
· Improve compressor efficiency
· Extend equipment service life
Compatible & Equivalent Models
This air compressor air filter element is compatible with:
· C20500
· 1613740800
· 2901043100
· 29504376
· 11323374
· 98262207
· 156010194401
· 6.2085.0
· 54672522
· 6211474300501
Suitable as a universal replacement air filter for screw compressors.
Why Air Filtration Is Critical
In industrial environments, intake air contains contaminants such as:
· Dust particles
· Metal debris
· Moisture
· Airborne impurities
Without effective air compressor intake filtration, these contaminants can:
❌ Damage compressor components
❌ Increase mechanical wear
❌ Reduce system efficiency
❌ Lead to unplanned downtime
A high-quality air compressor air filter element ensures clean intake air and reliable operation.
How Air Filters Work
1. Air Intake
Ambient air enters the filter housing.
2. Filtration Stage
The filter media captures particles through multi-layer filtration.
3. Clean Air Output
Only clean air enters the compressor system.
This protects internal components and improves efficiency.
Advanced Filtration Technology
Multi-Layer Filtration Mechanism
Captures particles from large to fine sizes.

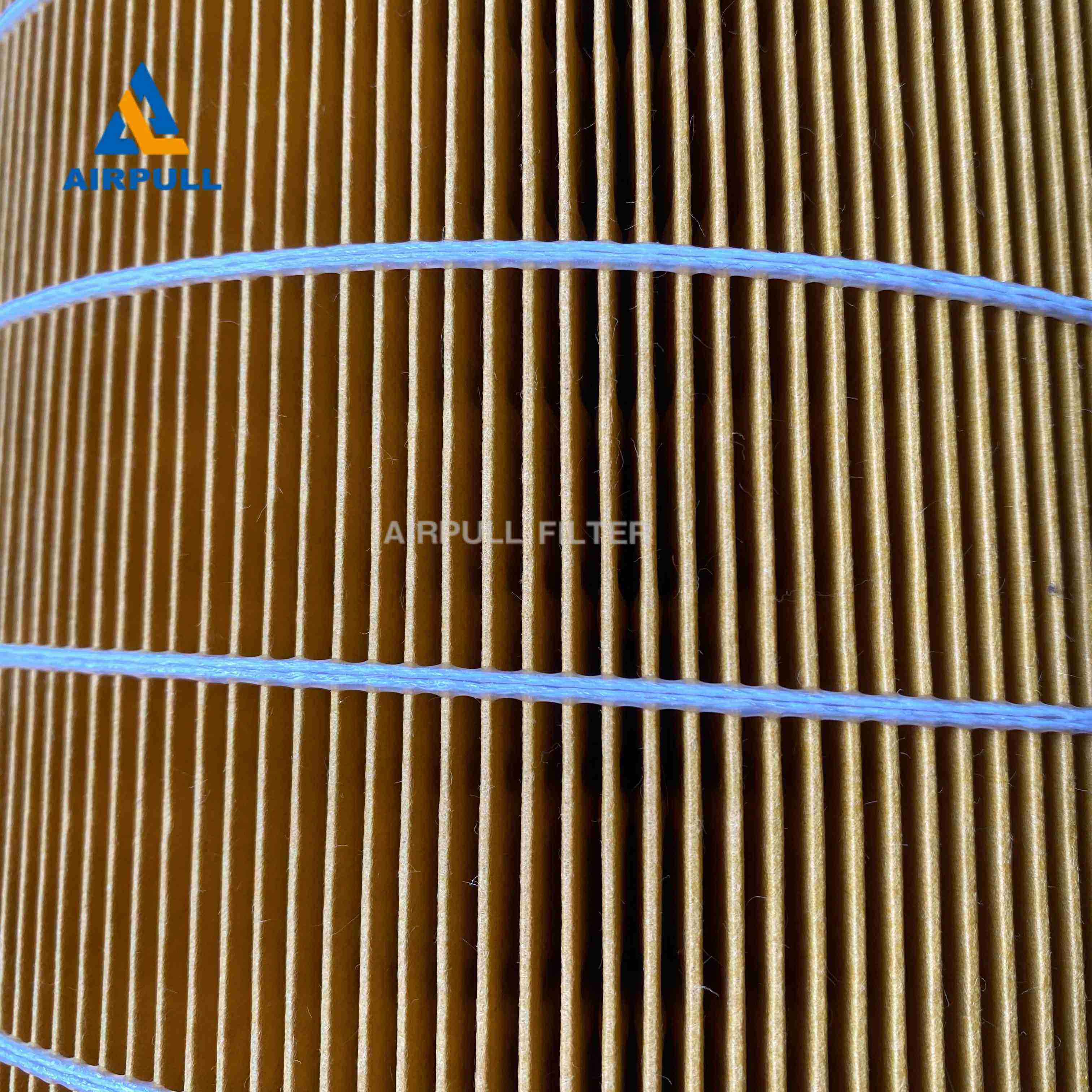

Pleated Filter Design
Provides larger filtration area and better dust retention.
Low Pressure Drop Design
Ensures smooth airflow and reduces energy consumption.
Dust Holding Capacity Explained
Dust holding capacity determines how long the filter can operate effectively.
✔ High capacity → longer service life
✔ Low capacity → frequent replacement
This air filter element is engineered for high dust loading environments.
Airflow Resistance & Energy Efficiency
A clogged air filter can:
· Restrict airflow
· Increase compressor load
· Raise energy consumption
A high-quality air compressor air filter can reduce energy consumption by maintaining optimal airflow.
Filtration Mechanisms
Air filters work through:
· Interception – particles captured by fibers
· Inertial impact – particles collide with media
· Diffusion – fine particles attach to fibers
These combined mechanisms ensure high filtration efficiency.

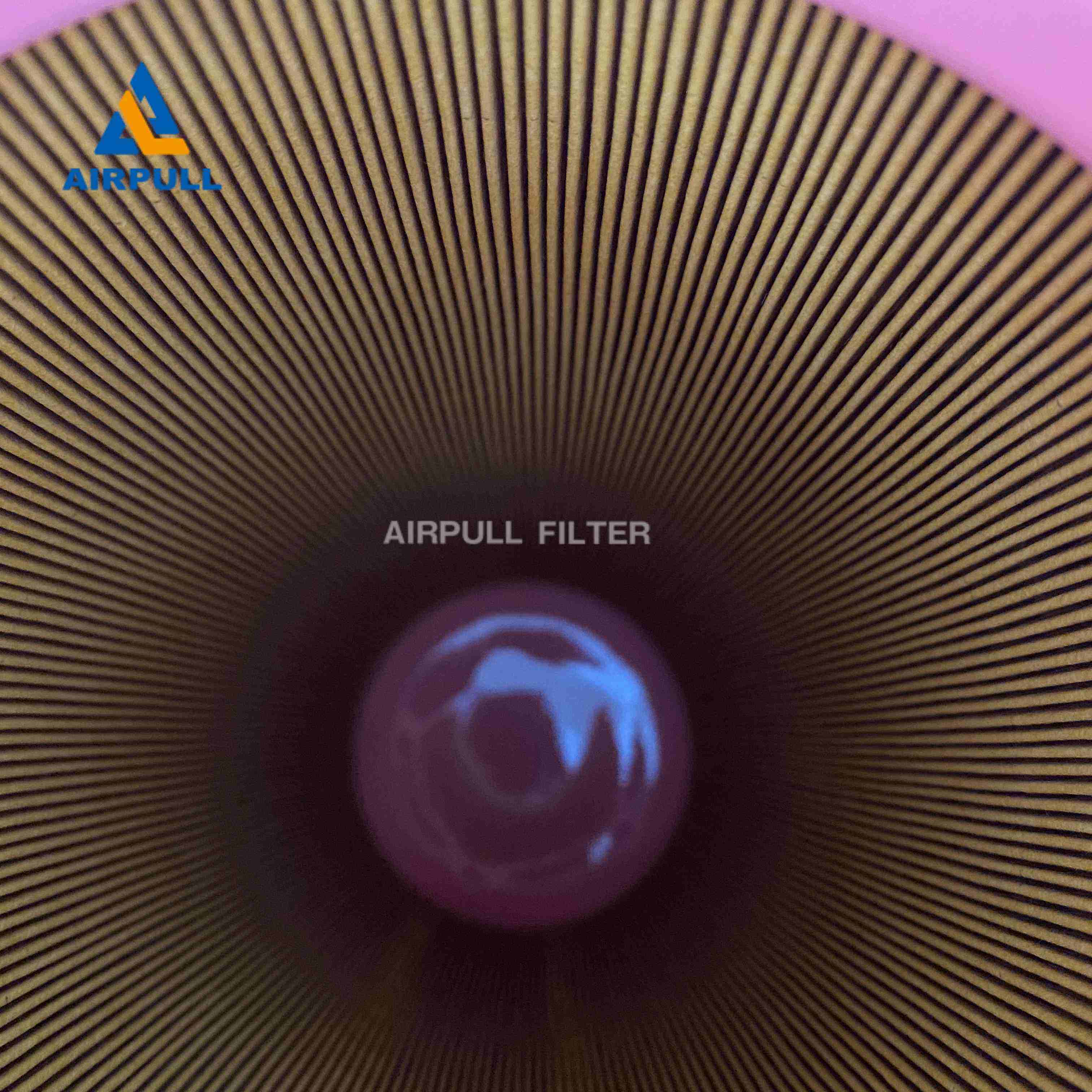

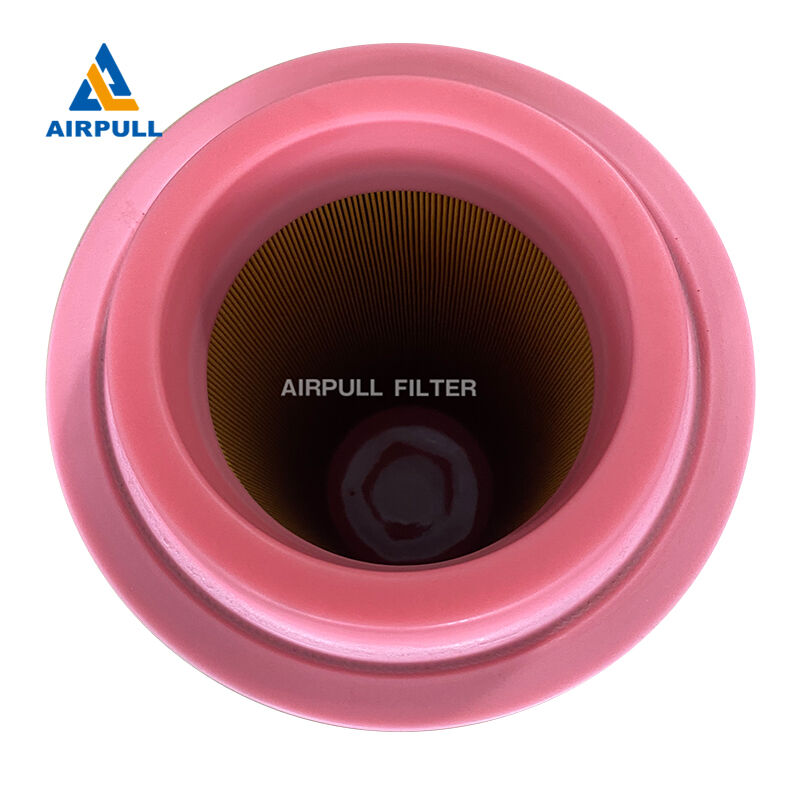

Product Structure
The air filter element is built with:
· High-density filter media
· Reinforced inner support
· Corrosion-resistant metal end caps
· High-quality sealing gasket
Technical Specifications
Parameter |
Description |
Product Name |
Air Compressor Air Filter Element |
Model |
1613740800 / C20500 |
Filtration Accuracy |
≤4 μm |
Filtration Efficiency |
99.8% |
Service Life |
2000–3000 Hours |
Materials |
Filter Paper, Fiberglass, Metal, Rubber |
Application |
Screw Air Compressors |
Applications
Widely used in:
· Rotary screw air compressors
· Industrial compressed air systems
· Manufacturing plants
· Automotive production lines
· Heavy-duty industrial environments
Air Filter vs Oil Filter vs Separator
Filter Type |
Function |
Air Filter |
Removes dust from intake air |
Oil Filter |
Cleans lubricating oil |
Air Oil Separator |
Separates oil from compressed air |
The air filter is the first protection stage in the system.
Maintenance & Replacement
Recommended replacement interval:
2000–3000 hours
Replace when:
· Airflow is reduced
· Pressure drop increases
· Filter is visibly dirty
Factory Strength & Smart Manufacturing
AIRPULL is a professional manufacturer of air compressor filtration products.
Smart Factory System
Automated production ensures:
· Stable quality
· High efficiency
· Fast delivery
Quality Control
Each filter undergoes:
· Material inspection
· Performance testing
· Final quality check
OEM / ODM Capability
Support:
· Custom branding
· Custom sizes
· Packaging solutions
Why Choose AIRPULL
✔ Factory-direct supplier
✔ Premium materials
✔ Competitive pricing
✔ Fast delivery
✔ Global export experience
Get a Quote
Looking for a reliable air compressor air filter supplier?
✔ OEM Available
✔ Factory Price
✔ Fast Delivery
✔ Stable Quality
Contact us now for 1613740800 / C20500 air filter quotation
If you cannot find your product code, please contact me.
